Radium Engineering 94-05 Mazda Miata/MX-5 Fuel Rail
$142.45
Radium Engineering 94-05 Mazda Miata/MX-5 Fuel Rail
This fuel rail is CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. It is a direct replacement for the OEM fuel rail. Plumbing kits are available that provide all the necessary parts to install and plumb the fuel rail with OEM components. The kits are compatible with all fuel types including popular alcohol mixtures such as E85. The OEM plastic spacers are reused and washers are included to thermally insulate the fuel rail from the aluminum intake manifold.
COMPATIBILITY
This fuel rail is compatible with most Mazda 1.8L DOHC BP engines:
1994-1997 Mazda Miata
1998-2005 Mazda MX-5
1994-1996 Eunos Roadster

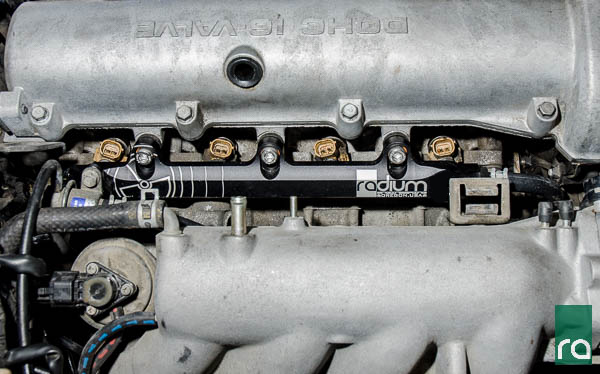

Installation on a 94-97 Miata shown below:
.

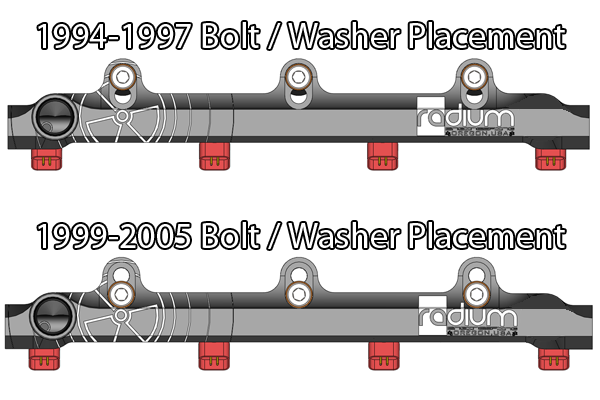

As shown in the diagram below, there are two different mounting locations on the fuel rail, which allow it to be installed on mutliple engines.
FUEL INJECTOR COMPATIBILITY
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.
This is the basic fuel rail kit, and only includes the fuel rail and the mounting hardware as shown in the picture below. This is ideal for custom applications where the installer is going to build custom fuel system plumbing.
